Adding Cache Servers in Openshift at Runtime

NCache has a scalable architecture and can very easily enhance your application's capacity and functionality by letting you add servers to your cache at runtime. In OpenShift you can scale your application by adding pods to your cluster.

This can be also done using both web portal and command line tool.

Using OpenShift Portal

  • Go to the Deployments section under the Workloads tab.

  • From the deployments' page which displays all the NCache deployments, click on the three dots button against the server side deployment (which in this case is ncache).

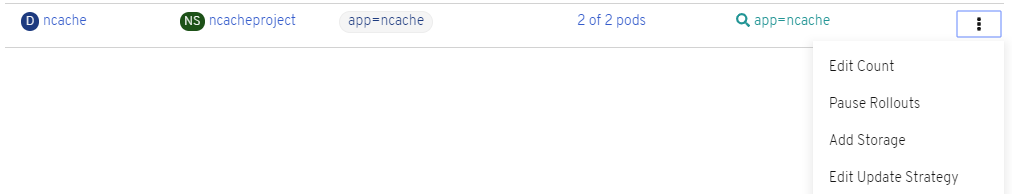

Add Cache Servers

  • Click on the Edit Count button. It lets you increase the number of replica pods in your cache cluster. Click on the + button to increase the replica count.

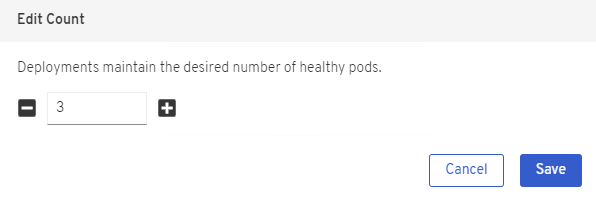

Increase replica count

Using Command Line Tool

In order to increase the pods' replica count through OpenShift command line tool, run the following command:

Here the name of the server side deployment is ncache as created previously.

oc scale deployments/ncache --replicas number_of_increased_server_nodes

Manually Editing Configuration File

You can also edit the ncache.yaml file containing the server side deployments.

  • In the YAML file, against the replicas under the spec tag, mention the number of replicas according to the requirement.

  • Run the following command after modifying the YAML file.

oc apply -f ncache.yaml

Add Server Nodes to Cache

However, by increasing the pod count, a pod is created but does not become a part of the cache automatically. In order to increase cache servers at runtime:

  • Access the NCache Management Center from the Location tab in the Routes section.

  • Follow the steps mentioned in Add Server Nodes in order to add server nodes at runtime.

  • On successful addition of cache servers, verify through NCache Management Center or Monitor.
