Create Azure Kubernetes Cluster

Kubernetes is an open-source container orchestrator that automates deployment, scaling, and management of operations. A Azure Kubernetes cluster can be created through Azure Portal or Azure Cloud Shell.

Using Azure Portal for Creating Azure Kubernetes Cluster

When using Azure Portal, the following steps will let you create a Azure Kubernetes cluster in Azure.

  • From the Azure portal, go to Resource groups from the leftmost pane of the window.

  • From the list of resource groups, left-click on your resource group (created in Create Azure Resource Group).

  • Left-click on the + Add button on the top left corner.

  • In the search bar, under the New tag, type Kubernetes Service.

  • Press enter to get the following screen as the search result.

azure-portal-search-result-kubernetes-service

  • Left-click on the Create button. On clicking the button, you will be redirected to a Create Kubernetes cluster page.

  • At the Create Kubernetes Cluster page, you are going to create the required Kubernetes cluster. Add these details according to your requirements.

azure-portal-create-kubernetes-cluster-details

Tip

Primarily, all you need to do is assign a name to your Kubernetes cluster, leaving the rest in their default settings. However, for enhanced control over your cluster, you can adjust the Region, Node count, and Node size as per your requirements. Additionally, you have the flexibility to scale, monitor, and incorporate authentication, networking, and tags into your Kubernetes cluster, allowing you to optimize it further.

  • Click on the Review + Create button at the bottom of the window to review the provided details.

  • Once the validation criterion is met, you will be notified as thus,

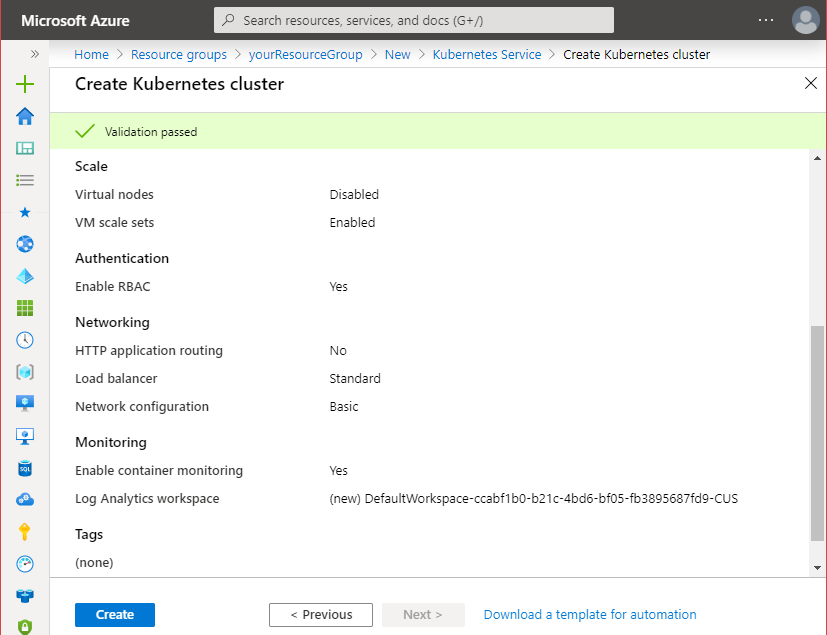

azure-portal-kubernetes-cluster-create

  • Click on Create to create your Kubernetes cluster. This creation process usually takes a few minutes to complete.

Using Azure Cloud Shell

  • After the resource group has been successfully created, create a service principal and configure its access to Azure resources through the following command
az ad sp create-for-rbac

This command will return an output such as:

azure-shell-service-principal

  • Use the appId and password from the results of the previously executed command in the command below. This will create an Azure Kubernetes Service cluster for you.
az aks create --resource-group aksgroup --name akscluster --node-count 2 --service-principal 'appId' --client-secret 'password'

Connect to Kubernetes Cluster

After the Kubernetes cluster is created successfully, you need to connect it. Use the following command to get the credentials of your newly created AKS cluster and get them saved on the local machine.

az aks get-credentials --name akscluster --resource-group aksgroup

The next step after creating a Kubernetes cluster is to create NCache deployment which is explained in the next chapter.
